The workflow engine agents can prove.
QuoxFlow replaces fragile automation chains with a structured workflow engine. Governed work streaming through the AOCL pipeline, with an audit trail on every run.
npm install @quoxai/quoxflow
In plain words
What it is, where it lives, when to reach for it
- What is it
- A workflow engine inside QuoxCORE that runs multi step automations with human approval gates.
- Where do I use it
- In the dashboard's workflow builder, and through the
quox workflowcommands in your terminal. - When would I use it
- When a job has more than one step and you want it to run the same way every time.
- How do I use it
- Open Workflows in the dashboard, build the steps on the canvas, then click Run.
QuoxCORE is the free, self-hosted platform underneath this. What is QuoxCORE
Visual builder, version control.
Design flows, version them, and replay any execution. Workflows are JSON DAGs under the hood, so they diff, review and ship like code.
▸ live WireMap · replayable runsGoverned by default.
Every step passes through AOCL. Policy gates decide what runs immediately, and human approval stands in front of anything that matters.
▸ policy gates · human approvalStreamed, not batched.
Work moves through the pipeline live, and you can watch it: running executions, node-by-node progress, and evidence landing as it happens.
▸ live monitoring · evidence on landingThe problem
Most workflow tools treat "reboot production" the same as "send a Slack message".
A junior engineer triggers "reboot production VM" at 3am and it just runs. No approval gate stood in the way, no audit trail says who or why, and no evidence proves what happened. The tool is opaque middleware between you and your infrastructure: you see inputs and outputs, nothing in between.
no audit trailno governanceblack box
QuoxFlow is the opposite bet. Here is the engine: everything below is shipped and in the repo. No vapour, no roadmap dressed as product.
What it is
A workflow engine you can trust with production.
Workflows are JSON DAGs: nodes connected by edges, executed via CLI, REST API, cron schedules or event triggers. QuoxFlow calls your HTTP APIs and governed platform tools directly, no proxy layer in between.
What makes it different: every execution runs through seven control layers. Policy gates can block, or hold a step for human approval. Every result produces immutable evidence. You always know what ran, who authorised it, and what happened.
- Visual workflow builder with live WireMap preview and AI-assisted creation
- Real-time execution monitoring with a Running Now view and APM-style drilldowns
- Policy management with inline testing, and approval workflows in the Inbox
- 33 node types, from webhook triggers to agents, teams and browser automation
- Subworkflow nesting to depth 5 with automatic depth guards
- Built-in n8n workflow importer with automatic node mapping
$ quoxflow run health-check.json \ --data '{"host": "nw-web-01"}' ▸ Ingress envelope created ▸ Identity authenticated: admin ▸ Policy ✓ allowed (read-only) ▸ Context inputs resolved ▸ Execute call → nw-web-01 status API ▸ Verify 3 containers healthy ▸ Assemble evidence stored ✓ Completed in 1.2s Correlation: exec_01HQXM...
Live demonstration
Watch a governed run cross the gate.
The whole engine in one loop. A webhook fires, the workflow checks a Docker host, and a healthy result simply logs and seals evidence. When a container is unhealthy the fix is destructive, so policy holds the run at an approval gate. Approve or deny the restart yourself.
illustrative demo · sample data · timings compressed
Every line in that log is an AEE envelope with a globally unique ID, and the run above is the same canvas the real builder renders: a live WireMap preview of the graph as you build it, a palette of 33 node types to drag from, and an AI assistant that builds the workflow from plain English through a guided 7-phase flow, then deploys it in one click.

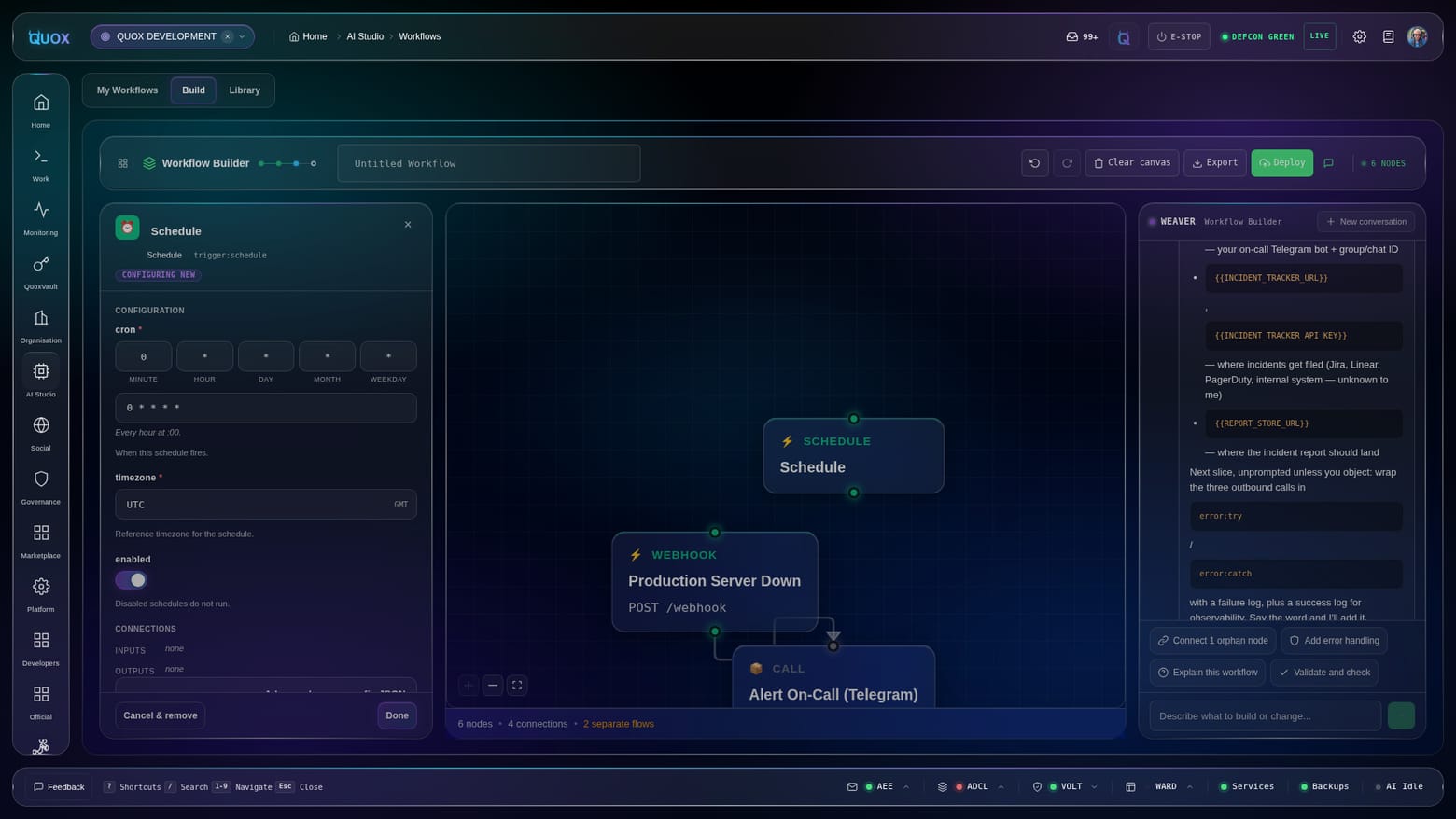

The real builder
Not a simulation. The actual canvas.
The run above is staged. This is the workflow builder itself: Weaver drafting the graph from plain English, the node inspector configuring a schedule trigger, and the toolbar that ships it.
- 1Set the schedule inlineCron cells, a timezone and an enabled toggle sit right in the node inspector.
- 2Ask Weaver to build itThe assistant panel drafts and edits the workflow from plain English, next to the canvas it is changing.
- 3Act on Weaver's suggestionsConnect an orphan node, add error handling or validate the graph, each one a single chip.
- 4Trace the incident pathA production-down webhook wires straight through to a Telegram on-call alert, drawn as a live node graph.
- 5Read the canvas at a glanceThe status bar counts nodes, connections and separate flows, so a tangled graph never hides.
- 6Export or deploy in one clickUndo, redo, export and deploy live in the same toolbar as the running node count.
Captured from the real QuoxFlow workflow builder, not a mockup.
Build
Workflows are JSON DAGs.
This is the definition behind the canvas above. Nodes connected by edges, with optional variables: each node has a type, config and position, and edges can carry conditional expressions. Because the definition is a file, it versions, diffs and reviews like the rest of your code, and any execution can be replayed against it.
- Execute via CLI, REST API, cron schedule or event trigger
- Validate definitions before running with
quoxflow validate - Query past runs by correlation ID with
quoxflow query - REST API for workflows, executions, policies, approvals and evidence
{
"id": "health-check",
"name": "Docker health check",
"nodes": [
{ "id": "trigger", "type": "trigger:webhook",
"config": { "path": "/health-check", "method": "POST" } },
{ "id": "check", "type": "call",
"config": { "url": "https://nw-web-01/api/containers" } },
{ "id": "branch", "type": "flow:condition",
"config": { "expression": "${input.unhealthy > 0}" } }
],
"edges": [
{ "source": "trigger", "target": "check" },
{ "source": "check", "target": "branch" }
]
}Node types
33 node types, webhooks to agents.
Every type below is defined in the engine today. Agents, teams and browser automation are first-class workflow steps, not bolt-ons.
Triggers 3 types
Control flow 5 types
Actions 2 types
Data 3 types
Error handling 3 types
Utilities 3 types
Human-in-the-loop 2 types
Agents & teams 5 types
Browser automation 5 types
Integration 2 types
Counted from the engine's type definitions in the quoxflow repository.
Expression engine
Sandboxed JavaScript expressions.
Expressions use ${...} syntax and run in isolated V8 sandboxes via isolated-vm, not eval. Each expression gets an 8 MB memory limit and a 1-second timeout, with no access to process.env or Node.js APIs.
- Access
input,nodes,varsandworkflowcontext - Built-in helpers:
$.now(),$.uuid(),$.jsonPath(),$.base64Encode() - Use in any config field: conditions, HTTP bodies, transform logic
- Validated at definition time via
quoxflow validate
// Condition node "${input.amount > 10000}" // Transform node "${input.items.filter(i => i.status === 'active')}" // HTTP body template { "alert": "${input.host} is unhealthy", "count": "${input.unhealthy}", "time": "${$.now()}" } // Access previous node outputs "${nodes.check.status === 200}" // Built-in helpers "${$.jsonPath(input, 'data.results[0].value')}" "${$.base64Encode(JSON.stringify(input))}"
Govern
Governed by default.
Every execution passes through seven control layers, and each layer emits observable, queryable AEE envelopes. Not a log line: a causal chain with globally unique IDs, linked via reply_to references.
What this means in practice.
When someone triggers "stop production VM", you get a complete record: who requested it, whether policy allowed it, whether a human approved it, whether it succeeded, and immutable evidence of the result. Queryable via CLI or API.
- Policy management · full CRUD with inline testing: create, edit and validate rules in the dashboard, and test them against sample operations before deploying
- Approval workflows · destructive operations pause and wait for a human in the Inbox, with configurable timeout and escalation, approve or reject with comments
- Evidence browser · every execution produces an immutable record, browsable with correlation search, detail panels and full causality chain views
{
"name": "proxmox-destructive",
"rules": [{
"conditions": {
"tool": "proxmox_vm_action",
"params": { "action": ["stop", "reboot", "shutdown"] }
},
"effect": "require_approval",
"approvers": ["admin", "group:infrastructure"],
"timeout": "1h"
}]
}This policy watches for Proxmox VM actions. If the action is stop, reboot or shutdown, it pauses execution and creates an approval request: an admin or infrastructure team member has one hour to approve or deny.
Safe operations run immediately. Destructive operations pause for a human, and the approval itself becomes part of the evidence.
Watch
See everything. Miss nothing.
Work moves through the pipeline live. Watch running executions, drill into any node, and trace the causality chain after the fact.
01Running now
A live view of every executing workflow with animated progress. 5-second polling shows the active node, elapsed time and status at a glance.▸ live · 5s polling
02APM-style drilldown
Click any execution for a node-by-node timeline with waterfall visualisation and collapsible payload data. See where time went and what data flowed.▸ waterfall · payload inspector
03Schedule visibility
All scheduled and cron workflows in one view: next run times, countdown timers, execution history and status filters.▸ countdowns · track record
04Audit trail search
Search audit records by correlation ID or intent. Filter by type and trace causality chains across workflows and agent hand-offs.▸ correlation · causality chains
05Run and re-run
Run any workflow from its card and get instant feedback with the execution ID. From the detail page, run it again in one click.▸ instant feedback · run again
06Inline history
Expand any workflow card for its last 10 runs: status, timestamp and duration, with one click through to the full waterfall.▸ per workflow · click to drill
07Import from n8n
Paste or upload an n8n workflow JSON export and QuoxFlow converts it with automatic node mapping and warnings for unmapped features.▸ JSON import · no n8n instance required
08Approval to execution
Approval requests in the Inbox link straight to their execution detail. One click from approve to the full timeline, no hunting for correlation IDs.▸ linked · traceable
n8n import
Build native. Or bring your n8n workflows.
QuoxFlow executes directly against your own APIs and hosts. If you already have workflows built in n8n, the built-in importer converts them once, offline, into native QuoxFlow workflows.
Native execution against your own APIs and hosts. No middleware in the way, and policy gates can hold anything destructive for a human.
Paste or upload an n8n workflow export and the importer converts it, node by node, into a QuoxFlow workflow. No running n8n instance required: the JSON is converted once, then the workflow runs natively from that point on.
Whether it was built natively or imported from n8n, every QuoxFlow workflow produces the same record: who triggered it, what policy said, and what happened.
Already on n8n? Import it.
The built-in importer converts n8n workflow JSON to QuoxFlow format. 50+ n8n node types are automatically mapped, expressions are converted from {{ }} to ${ } syntax, and connections and canvas positions are preserved.
- 50+ n8n node types auto-mapped
- Expression syntax automatically converted
- No running n8n instance required: it converts JSON only
- Warnings for unmapped credentials and unsupported features
$ quoxflow import docker-status.json \ --output converted.json --pretty Converting n8n workflow... Webhook → trigger:webhook Code → data:transform IF → flow:condition HTTP Request → call Set → data:set ✓ Converted 5 nodes, 4 edges ⚠ 1 warning: credential 'docker_ssh' requires manual setup Saved to converted.json # or over the REST API: POST /api/workflows/import-n8n { "workflow": <n8n JSON>, "options": { "includePositions": true } }
Connector library
Real vendor calls, not placeholders.
The n8n importer resolves nine of the vendor node types it sees most often to a genuine API request (real endpoint, real method, a body reshaped into that vendor's own request format) instead of the generic HTTP placeholder.
Each connector covers that vendor's dominant real-world operation(s), sampled from a library of real n8n workflows, not its entire API surface, so a less common operation on the same node type can still fall back to the placeholder.
Vendors covered 9 connectors
Agent & Chain composition
n8n's Agent and Chain nodes compose onto QuoxFlow's own agents.
n8n's LangChain Agent node maps onto QuoxFlow's agent:invoke; its Basic LLM Chain node maps onto assistant:invoke.
What doesn't come along automatically: n8n's attached Chat Model and Memory nodes are informational only (the QuoxFlow agent you assign brings its own model), attached Tool nodes are named in a warning rather than auto-wired, and conversation memory across separate runs isn't preserved.
Most agent-shaped n8n workflows use more than just the agent node, so composing that one piece rarely makes the whole workflow run end to end by itself.
- 308 sampled workflows contain an Agent or Chain node
- 22 of those are fully clean or minor-polish after this pass
- The remaining 286 are still blocked by a different, unmapped node type, not by the agent piece itself
The honest numbers
What the sample library looks like today.
Re-run against the same 1,340-workflow sample used to scope this work: 63 convert cleanly with no edits, 91 more need only minor polish (typically filling in a credential variable), and the remaining majority still contain other node types this pass didn't reach (structural nodes like Merge and Split In Batches, or vendors like HubSpot and Redis).
Every connector authenticates via a workflow variable you set yourself (for example ${vars.CREDENTIAL_SLACK_API}). QuoxFlow does not yet pull these from an encrypted vault automatically: that wiring is a tracked next step, not shipped.
Battle tested
Tested like production software.
Every executor, every policy gate, every approval flow and the whole n8n importer is covered by the engine's test suite. The figures below are counted directly from the quoxflow repository.
- Control pipelinelayer ordering, conditional edges, parallel branches, error propagation
- Executorsevery node type, including loop iteration, subworkflow nesting and agent invocation
- Approval gatestimeout, escalation, multi-approver, deny with reason
- n8n importnode type mappings, expression conversion, position preservation
- Policy enginepattern matching, RBAC, effect evaluation, inline testing
- Expression enginesandbox isolation, helper functions, timeout behaviour
Install
Docker Compose. One command.
QuoxFlow runs as a container alongside QuoxCORE, with PostgreSQL included in the compose file and JWT auth handled by the QuoxCORE auth service. Around 512 MB of RAM.
npm install @quoxai/quoxflowThe npm package ships a full CLI: run workflows, import n8n exports, validate definitions and query audit trails from the terminal. Or use the REST API, 30+ endpoints for workflows, executions, policies, approvals, evidence and template deployment. The QuoxCORE dashboard adds the visual builder, the Running Now monitor and the execution drilldowns on top.
$ quoxflow run workflow.json --data '{"host":"nw-web-01"}' # Execute a workflow with input data $ quoxflow import n8n-export.json --output converted.json # Convert an n8n workflow to QuoxFlow format $ quoxflow validate workflow.json # Validate a workflow definition $ quoxflow query --corr exec_01ABC --db postgres://... # Query audit envelopes by correlation ID
End of the pipeline
Put your pipeline on the record.
Stop running blind. Governed workflows with executors, gates and receipts included, and evidence you can hand to an auditor.
